Technical Diagram
Technical Diagram
  Non-Lockable Panel Cut Out
Packets 1 2 3 Each
RBC 16 65 75 85 10
RBC 25 84 96 108 12
RBC 32/40 72 85 98 13
RBC 50 80 95 100 15
  • For SL (Sequence Locking) Feature Add 12.5 MM
  • A Pair of LM (Lost Motion) Contacts Are Housed Per Packet
  • A Max of Ten Packets Are Recomended to House Main & LM Contacts
  Lockable Panel Cut Out
Packets 1 2 3 Each
RBC 16 85 95 105 10
RBC 25 102 114 126 12
RBC 32/40 90 103 116 13
RBC 50 105 120 135 15
  • For SL (Sequence Locking) Feature Add 12.5 MM
  • A Pair of LM (Lost Motion) Contacts Are Housed Per Packet
  • A Max of Ten Packets Are Recomended to House Main & LM Contacts

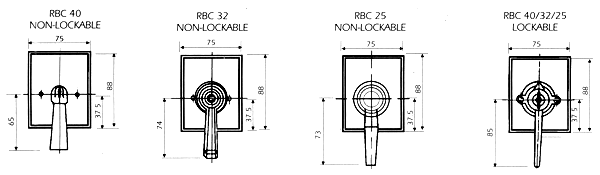

  Front View

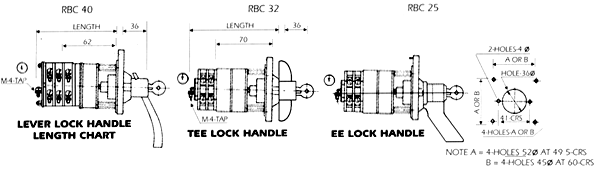

All the above type of Handles & Lock Assemblies are common for entire range of Recom RBC Control Switches.
