| 100, 125 & 150 CAM OPERATED L.T. SWITCH |
| |
| |
100A SWITCH |
125A SWITCH |
150A SWITCH |
| Ith Thermal Rating |
125 A |
150A |
175 A |
| Operational Voltage |
660 V |
660 V |
660 V |
| AC-1/AC-21A Rating |
100A |
125A |
150A |
| AC-23A (3 phase at 440V.) |
30KW |
37KW |
45KW |
| Terminal Size |
M8 x 12mm |
M8 x 12mm |
M10 x 15mm |
| Escutcheon Size |
88 x 88mm |
88 x 88mm |
88 x 88mm |
| Mounting |
Thro' Four M6 Screws at 100 CRS |
| Packet Size |
90mm¢ |
90mm¢ |
90mm¢ |
| Maximum number of packets |
12 |
12 |
12 |
| Life Expectancy |
| Electrical at rated Current |
over 10,000 operations |
| Mechanical at no Load |
over 2,00,000 operations. |
| Electrical Life |
| Indexing |
90°, 60°, 45° & 30° |
|
| |
Optional Attachments, Executions, Accessories Etc. :
- Available in sheet steel enclosures fitted with ball handle with
engraved skirt for motor control application.
- Base mounting with door interlocking attachment.
- Spring Return in one or both sides of OFF position for momentary contacts and
inching operation. Also with combination of Stayput and momentary contacts.
- Recessed yellow cup with red knob combination for padlocking.
- Centre keylock assembly with key removable in anyposition for un-authorised
operation
- Dimensional drawings available on request.
|
| |
Standard Switching Sequences :
Single, Twa, Three and Four Pole Switches of
Switching sequences like OFF/ON, changeover no OFF and with OFF, 3 way no OFF and with OFF, 4 way no OFF and with OFF, Five way no OFF and with OFF, 6 way no OFF and with OFF 7- way no OFF and with OFF, 8- way no OFF and with OFF, 9 and 10 way without and with OFF, 11 - way without and with OFF and 12 way no OFF are standard. Multipole switches are possible upto the limit of twelve packets build-up. Switches are available in 90 , 60 , 45 and 30 indexing. |
| |

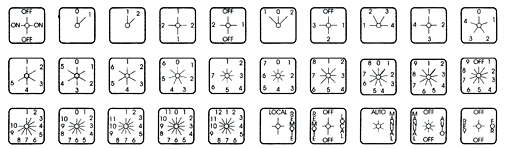

Standard Indicating Plates Size 64 X 64mm Supplied With The Swiches : |
| |
 |
| |
| |
| |
|
|
|
|
