Optional Attachments, Executions, Accessories Etc. :
- Available in sheet steel enclosures fitted with indexable ball handle and
engraved skirt for motor control application.
- Base mounting with door interlocking attachment., lever handle or Lock assembly
- Spring Return in one or both sides of OFF position for momentary contacts and
inching operation. Also with combination of Stayput and momentary contacts.
- Recessed yellow cup with red knob combination for padlocking.
- Centre keylock assembly with key removable in any position for un-authorised operation
- Dimensional drawings available on request.
|

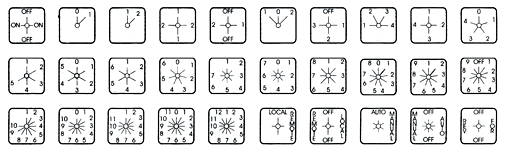

Standard Switching Sequences :
Single, Two, Three and Four Pole Switches of
Switching sequences like OFF/ON, changeover no OFF and with OFF, 3 way no OFF and with OFF, 4 way no OFF and with OFF, Five way no OFF and with OFF, 6 way no OFF and with OFF 7- way no OFF and with OFF, 8- way no OFF and with OFF, 9 and 10 way without and with OFF, 11 - way without and with OFF and 12 way no OFF are standard. Multipole switches are possible upto the limit of twelve packets build-up. Switches are available in 90 , 60 , 45 and 30 indexing. |
